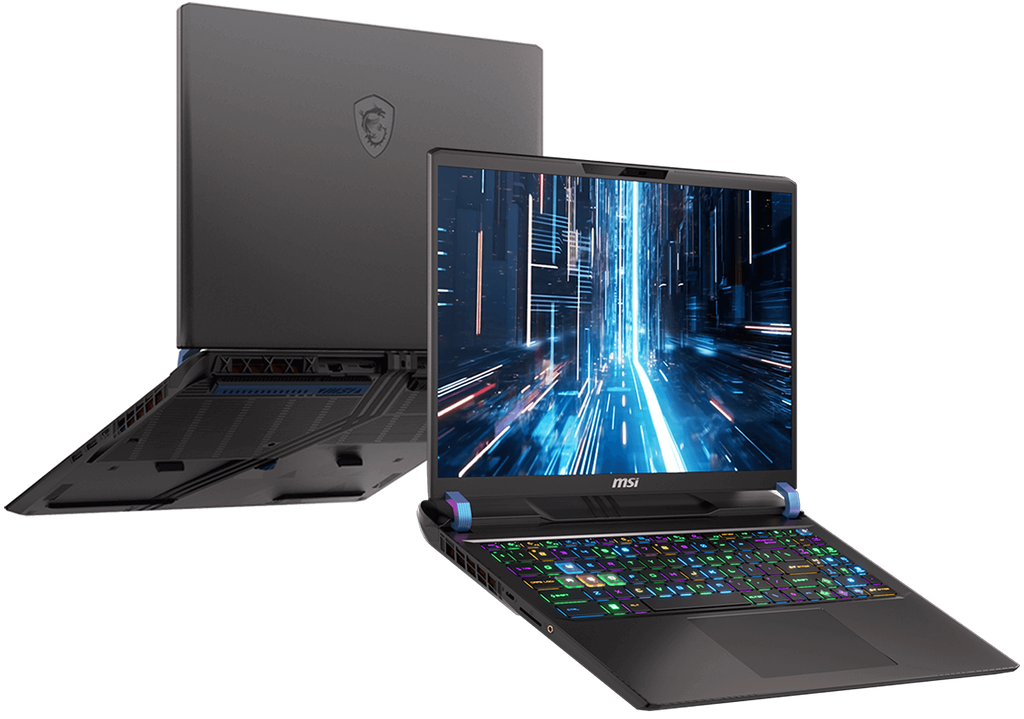

Image Source: MSI Official
Who Is It For?
The Vector 16 HX anchors a 16-inch 16:10 chassis to a desk for long sessions of high-frame-rate gaming or multi-layer 4K timelines while the 330 W brick stays attached. People who composite footage at home after work or run local game servers with browser research open fit the fixed-power pattern this series supports. Content creators who keep the machine on a dedicated surface for exports by day and switch to the discrete GPU for evening matches also match the daily flow.
The 2.7 kg body and large adapter make repeated bag carries across a campus or between rooms less practical than a pure desk setup. Two SO-DIMM slots and dual M.2 bays allow memory and storage capacity to change later. The 90 Wh pack keeps light browser or document work going for several hours away from the wall, but any sustained GPU load ends that window quickly. If this form factor or power doesn’t quite fit your daily work, exploring other lineup categories would be a better path.
1. High-Watt Brick and Dual Bay Expansion
330 W brick required for full combined power
The series ships with a 280 W or 330 W adapter that must remain connected for the GPU to reach its full TGP of 140–175 W and the combined CPU-GPU ceiling of 240 W under OverBoost. USB-C Power Delivery supports limited charging but cannot sustain the same sustained output. On a desk this means one large cable always present; any attempt to run high-load games or long renders from a portable charger alone drops the discrete graphics sharply. Check the sales listing for the exact adapter wattage included with the chosen SKU.
Two SO-DIMM slots and two M.2 bays
Memory uses two accessible SO-DIMM sockets that accept DDR5 modules up to a combined 96 GB. Storage provides one PCIe Gen4 and one Gen5-compatible M.2 2280 slot, so capacity can grow by adding a second drive rather than only replacing the original. After purchase the owner can raise RAM for larger project files or more concurrent applications and expand the game library or video archive without removing the first SSD. Confirm on the product page whether the listed configuration already fills both memory slots and both drive bays.
16-inch 16:10 panel stays fixed
Screen choices are locked at purchase: either a 1920×1200 144 Hz IPS panel or a 2560×1600 240 Hz IPS panel with 100 % DCI-P3 coverage on higher options. Neither version tilts beyond the hinge range or detaches. Brightness and color volume remain those of the selected panel for the life of the machine. Anyone who needs an external monitor must rely on the HDMI 2.1 or Thunderbolt outputs. Verify the exact resolution and refresh rate printed on the sales page before ordering.
These physical limits keep the machine tied to a high-watt outlet for peak work and allow storage growth only through the dual M.2 layout.
2. Desk Footprint, Bottom Intake, and Carry Mass
28.55 mm peak thickness on a shared surface
The chassis measures 357 × 284 × 22.2–28.55 mm. On a narrow café table or folding desk the rear vents and the 330 W brick leave little free surface for a mouse or external drive. The 16-inch 16:10 lid requires clear depth in front of the keyboard so the screen can open fully without hitting a wall or secondary monitor. Daily placement therefore favors a dedicated desk surface rather than temporary ones.
Bottom and rear intake under sustained load
Air enters through the underside and exits at the rear and side vents of the Cooler Boost 5 system. Soft bedding, a thick laptop sleeve, or a closed bag blocks the intake and raises internal temperatures within minutes of GPU activity. On a hard desk the dual fans ramp under full 240 W combined load and become audible in a quiet room; they stay quieter during light browser or document use. The plastic underside also transfers heat to the surface beneath it during long sessions.
2.7 kg plus brick for any move
The notebook alone weighs 2.7 kg. Adding the 330 W adapter and cable pushes the total past 3.5 kg. A short walk between rooms is manageable; repeated daily transit in a backpack across a campus or commute adds noticeable mass and requires a sleeve large enough for the 16-inch lid. The 90 Wh battery covers several hours of mixed office work but empties far sooner once the discrete GPU engages, so any mobile session still needs the brick nearby for serious tasks.
3. Performance by Use Case
Mid-to-high configurations pair an Intel Core Ultra HX or 14th-gen HX processor with an RTX 4070 to 5080 Laptop GPU at 140–175 W TGP. All heavy GPU work assumes the high-watt adapter is connected; battery mode restricts the discrete graphics sharply.
| Use Case | Software | Rating | Reason |
|---|---|---|---|
| 1600p competitive gaming | Valorant, CS2, Fortnite | Sufficient | Full TGP keeps high frame rates while plugged in |
| 1600p AAA gaming | Cyberpunk, modern titles with DLSS | Sufficient | 140–175 W and 12–16 GB VRAM sustain playable settings |
| Multi-stream 4K editing | Premiere, DaVinci Resolve | Sufficient | Timeline playback and exports hold when powered |
| Coding and browser multitasking | VS Code, Chrome, Docker | Sufficient | Dual-channel RAM and multi-core CPU handle concurrent loads |
| Battery-only heavy gaming or export | Any GPU-intensive title or render | Not enough | Discrete GPU power collapses and runtime shrinks to a short window |
Lower GPU options or 16 GB RAM configurations reduce the margin on the middle three rows.
4. Official Specs (with plain explanations)
| Category | Specification | Notes |
|---|---|---|
| Display | 16″ 16:10 FHD+ 144 Hz or QHD+ 240 Hz IPS | Fixed at purchase; matte finish |
| Processor | Up to Intel Core Ultra 9 275HX or i9-HX | Soldered; generation varies by SKU |
| Graphics | RTX 4070 to 5080 Laptop GPU | Up to 175 W TGP with Dynamic Boost |
| Memory | 2× SO-DIMM DDR5, max 96 GB | Removable sticks |
| Storage | 2× M.2 (Gen4 + Gen5 compatible) | Dual bay expansion |
| Battery | 90 Wh 4-cell | User-accessible after base removal |
| Adapter | 280 W or 330 W | Separate brick required for full power |
| Weight | 2.7 kg | With battery |
| Ports | Dual Thunderbolt 5/4, HDMI 2.1, SD reader, 2.5G Ethernet | Side and rear mounted |
This series is sold with different CPUs, memory, and storage depending on the release year and generation. Please match the specifications on your current seller page with the official information above.
Source: MSI Official Product Page
The dual M.2 layout and 330 W brick listed above directly determine later upgrade paths and desk cable layout.
5. Main Variations in This Series
GPU choice between RTX 4070, 5070 Ti and 5080 changes the sustained frame rate and export speed once the machine is plugged in. Screen selection between FHD+ 144 Hz and QHD+ 240 Hz alters pixel density and color volume for the life of the unit. Starting RAM of 16 GB versus 32 GB or 64 GB affects how many browser tabs or project layers remain open before swapping begins. CPU options from Ultra 7 HX to Ultra 9 HX alter multi-core rendering and compile times. Each of these choices is fixed after purchase except for the two SO-DIMM modules and the second M.2 bay that can still be filled.
6. What to Check on the Sales Page
Confirm the exact hardware listed for the SKU you are considering, because the same series name covers multiple generations and graphics levels.
- CPU Generation: Check whether you are getting the Core Ultra HX or 14th-generation HX processors.
- GPU model and listed TGP so the 140–175 W ceiling is clear.
- Whether both SO-DIMM slots are already filled and both M.2 bays are occupied.
- Exact screen resolution and refresh rate (FHD+ 144 Hz or QHD+ 240 Hz).
- Included adapter wattage (280 W or 330 W) and battery rating of 90 Wh.
Matching these five items against the official sheet prevents receiving a lower-power or older configuration under the same series name.
7. Disclaimer & Buying Advice
This buying guide for the Vector 16 HX is based on official manufacturer specifications and recurring real-world user experiences. It is completely independent, not sponsored, and does not guarantee specific performance for every unit. Hardware configurations such as the processor, memory, and storage can differ by generation and region, so please double-check the exact specifications listed on your seller’s page before purchasing.
8. Beginner Guide
The mandatory high-watt brick and 2.7 kg chassis define the daily limits of this series more than any other factor. [Start Here] walks through how those constraints interact with common work and play patterns before any purchase decision.
