Who Is It For?

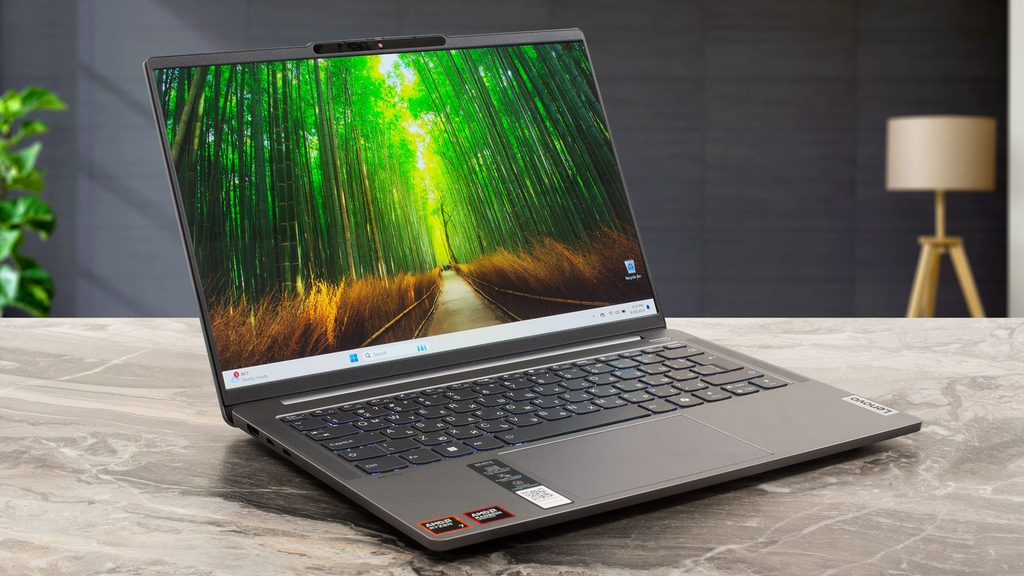

The IdeaPad Pro 5 is used by office professionals and students who require a high-resolution screen for multitasking but need to carry their laptop between locations every day. It fits the needs of mobile content creators who use the SD card reader and the color-accurate OLED screen for photo and video editing. It also serves as a primary computer for those who prioritize a solid aluminum build and the ability to add a second storage drive over time. The 120Hz refresh rate and optional dedicated graphics card make it a choice for those who perform light 3D work or video production alongside their daily office tasks.
If this form factor or power doesn’t quite fit your daily work, exploring other lineup categories would be a better path.
1. Check Before You Buy
Memory Limitations and Long-Term Planning
The LPDDR5x memory in the IdeaPad Pro 5 is soldered directly to the motherboard. Soldered means the memory chips are permanently attached and cannot be removed or replaced. There are no empty slots for adding more RAM later. If a unit is purchased with 16GB, it will remain at 16GB for the life of the device. For those who run multiple professional applications or keep dozens of browser tabs open, the 32GB version is a fixed hardware choice that must be made at the time of purchase. The storage, however, remains upgradable. The chassis contains two physical M.2 slots, allowing for the addition of a second SSD without removing the original one. This is a rare feature for a laptop of this weight and size.
Display Technology and Battery Consumption
The IdeaPad Pro 5 is available with two distinct screen types. The OLED version features a resolution of 2880 x 1800 or higher and provides deep black levels because each pixel can turn off completely. This technology results in high color accuracy for photo and video work. However, the OLED screen surface is glossy, which reflects overhead lights and windows more than a matte screen. The IPS version features a matte anti-glare coating that reduces reflections. The 120Hz refresh rate on both panels results in smoother movement of the mouse cursor and window animations. This high refresh rate and the high-resolution display are significant consumers of energy. When the laptop is not connected to a wall outlet, the system may reduce the refresh rate to 60Hz to extend the runtime.
Thermal Management and Fan Activity
The cooling system in the IdeaPad Pro 5 consists of internal fans and heat pipes that move thermal energy away from the processor and the optional dedicated graphics card. During basic tasks like document editing or web browsing, the fans often remain at a low speed that is difficult to hear in a standard room. When the system is under a heavy load, such as during high-resolution video exports or when the dedicated RTX graphics card is active, the fan speed increases. This results in a steady air-rushing sound from the vents. The heat is primarily exhausted through the rear of the chassis near the hinge. The aluminum chassis also acts as a secondary heat sink, and the area above the keyboard will feel warm to the touch during these periods.
Physical Build and Structural Rigidity
The chassis is constructed from aluminum, which provides a metallic feel and resists fingerprints better than plastic. When the device is lifted with one hand, it feels solid, but there is a small degree of physical flexibility in the lid when pressure is applied. This is a characteristic of the slim aluminum design and does not indicate a mechanical failure. The 14-inch model is intended for frequent travel, while the 16-inch model provides more screen space but requires a larger bag. The hinge allows the screen to open 180 degrees, letting the laptop lay flat on a desk surface. The weight distribution allows the lid to be opened with one hand without the base lifting off the desk.
Battery Life and Power Delivery
The battery capacity of 75Wh or 84Wh is high for this category. However, the actual duration of use depends on the hardware configuration. Models with a dedicated NVIDIA graphics card and an OLED screen consume power at a higher rate than models with integrated graphics and an IPS screen. The device supports charging through the Thunderbolt 4 or USB-C ports, allowing for the use of compact 100W USB-C power adapters. The total travel weight, including the adapter, remains low for daily commutes. The system software includes a “Conservation Mode” that limits the battery charge to 80% to extend the physical lifespan of the battery cells when the laptop is primarily used while plugged in.
2. How It Fits a Real Desk Setup
Workspace Footprint and Port Layout
The IdeaPad Pro 5 occupies a desk space determined by its screen size. The 14-inch model requires an area of approximately 31.2 cm by 22.1 cm, while the 16-inch model requires 35.6 cm by 25.1 cm. The port distribution is primarily located on the left side of the chassis. This includes the Thunderbolt 4 or USB-C ports, the HDMI 2.1 port, and the power input. This layout means that cables for power and external monitors will primarily protrude from the left side. For right-handed users who use an external mouse close to the laptop, the right side remains clear of thick cables. The right side typically houses the USB-A ports and the full-size SD card reader.
Keyboard Experience and Numeric Keypad
The 16-inch model includes a full numeric keypad on the right side, which shifts the main typing area and the touchpad slightly to the left of the center. The 14-inch model does not have a numeric keypad, allowing the keyboard and touchpad to be centered. The keys have a 1.5mm travel distance, providing a tactile response that is consistent across the layout. The keyboard includes a backlight with adjustable brightness levels, which is useful for working in low-light environments. The touchpad is large and uses a glass surface, providing a smooth feel for multi-finger gestures. The keys are designed to be quiet, which is a factor when working in shared spaces like libraries or offices.
External Monitor and Peripheral Connectivity
Connecting the IdeaPad Pro 5 to a desk setup is facilitated by the Thunderbolt 4 (on Intel models) or USB4 (on AMD models) ports and the HDMI 2.1 port. These ports support high-resolution video output to external monitors. The USB-C ports also allow for a single-cable connection to a compatible dock, which can manage power and multiple peripherals simultaneously. This keeps the desk surface clear of multiple wires. The inclusion of a full-size SD card reader is a specific feature that allows for direct file transfers from cameras without an external adapter. Because the laptop features multiple USB-A ports, most users can connect a keyboard and a mouse without needing a USB hub.
Audio and Video for Meetings
The webcam is located at the top of the screen and features a 1080p resolution, which provides a standard image quality for video conferencing. It includes an infrared (IR) sensor for Windows Hello facial recognition, allowing the user to sign in by looking at the camera. A physical privacy shutter is not present on all models, but an electronic kill switch or a software toggle is usually available. The dual microphones use AI noise-canceling technology to filter out background sounds. The speakers are located on the bottom of the chassis and fire downwards. The sound quality is influenced by the surface the laptop is sitting on; a hard desk reflects the sound toward the user, while a soft surface like a lap will dampen the audio.
Thermal Exhaust and Airflow
The cooling vents are located on the bottom of the chassis for air intake and near the hinge for exhaust. When the laptop is used on a hard, flat desk, the rubber feet provide enough clearance for air to enter the system. Using the laptop on a soft surface like a bed or a carpet will block these intakes, causing the fans to spin faster and the internal temperatures to rise. The heat is exhausted toward the bottom of the screen, and the area above the keyboard will feel warm to the touch during intensive processing. The aluminum chassis helps dissipate heat, but the internal temperatures are managed by the system software to prevent overheating.
3. Performance by Use Case
The performance of the IdeaPad Pro 5 is determined by the specific processor and whether the dedicated NVIDIA GPU is included. The following ratings assume a configuration with 16GB of RAM.
| Use Case | Software | Rating | Reason |
| Office Productivity | Excel, Word, Outlook | Sufficient | Fast response times and high-resolution screen |
| Web Browsing | Chrome, Edge (20+ tabs) | Sufficient | 16GB+ RAM handles many active tabs without lag |
| Photo Editing | Photoshop, Lightroom | Sufficient | Color-accurate OLED screen and SD card reader are beneficial |
| Video Editing | Premiere Pro (1080p) | Sufficient | Dedicated GPU and H-series CPU speed up renders |
| 3D Rendering | Blender, AutoCAD | Adequate | Possible for entry-level work, but fans will be loud |
The ratings above reflect the capabilities of the hardware when connected to a power outlet. Performance in specific applications will depend on the complexity of the project files and the thermal mode selected in the Lenovo Vantage software.
4. Official Specs (with plain explanations)
| Category | Specification | Notes |
| CPU | Intel Core Ultra 5/7/9 or AMD Ryzen 5/7/9 | Modern processors with integrated AI processing units |
| Graphics | Integrated Graphics or NVIDIA RTX 3050 / 4050 | Dedicated GPU options for 3D and video tasks |
| Memory | 16GB / 32GB LPDDR5x | Soldered to the motherboard, no expansion slots |
| Storage | 512GB / 1TB / 2TB NVMe SSD | Two M.2 slots available for storage expansion |
| Display | 14″ or 16″ OLED / IPS (120Hz) | High refresh rate, 16:10 aspect ratio |
| Weight | 1.46 kg (14″) to 1.91 kg (16″) | Aluminum chassis, weight varies by screen size |
| Battery | 75Wh (14″) or 84Wh (16″) | High capacity for the slim laptop category |
| Ports | Thunderbolt 4 / USB4, HDMI 2.1, SD Reader | Full-size ports for various physical connections |
This series is sold with different CPUs, memory, and storage depending on the release year and generation. Please match the specifications on your current seller page with the official information above.
Source: Lenovo Official Product Page
The technical specifications of the IdeaPad Pro 5 define its role as a performance-oriented slim laptop. These components determine how the device handles software and how it physically behaves during daily transport. Understanding these individual parts is necessary to identify the capabilities of a specific unit found on a retail website.
5. Main Variations in This Series
The IdeaPad Pro 5 series features several hardware combinations that change the processing power and visual experience. These variations are determined by the specific model chosen at the time of purchase.
- Screen sizes are available in 14-inch and 16-inch formats, which changes the total weight and the presence of a numeric keypad.
- Graphics configurations are split between integrated graphics and dedicated NVIDIA GeForce RTX 3050 or 4050 Laptop GPUs.
- Display technology is available in OLED for high contrast and deep blacks, or IPS for consistent brightness and matte finishes.
- Memory is available in 16GB or 32GB capacities, but because it is permanently attached to the board, the choice made at purchase is final.
- Processor options include both Intel Core Ultra and AMD Ryzen 8000 series platforms, affecting how the system manages power and heat.
6. What to Check on the Sales Page
When viewing an IdeaPad Pro 5 listing, the specific memory capacity and the graphics type are the most important details to verify. Sellers often list different hardware configurations under the same series name.
- CPU Generation: Check whether you are getting the Intel Core Ultra or the AMD Ryzen 8000 series processors.
- Memory Capacity: Confirm if the unit has 16GB or 32GB, as this cannot be changed later.
- Graphics Type: Verify if the listing includes “Integrated Graphics” or the “NVIDIA GeForce RTX 3050/4050” dedicated card.
- Screen Type: Confirm if the display is OLED or IPS based on your preference for contrast or matte finish.
- Storage Slots: Verify that the unit contains two M.2 slots if you intend to add a second drive later.
The specifications on a retail page can sometimes be generalized. Matching the manufacturer’s part number with the official datasheet is the most accurate way to confirm the internal hardware.
7. Disclaimer & Buying Advice
This buying guide for the IdeaPad Pro 5 is based on official manufacturer specifications and recurring real-world user experiences. It is completely independent, not sponsored, and does not guarantee specific performance for every unit. Hardware configurations such as the processor, memory, and storage can differ by generation and region, so please double-check the exact specifications listed on your seller’s page before purchasing.
8. Beginner Guide
If you are new to choosing computer hardware and want to understand the basics of these components, you can [Start Here] to learn more about how to read specifications.
