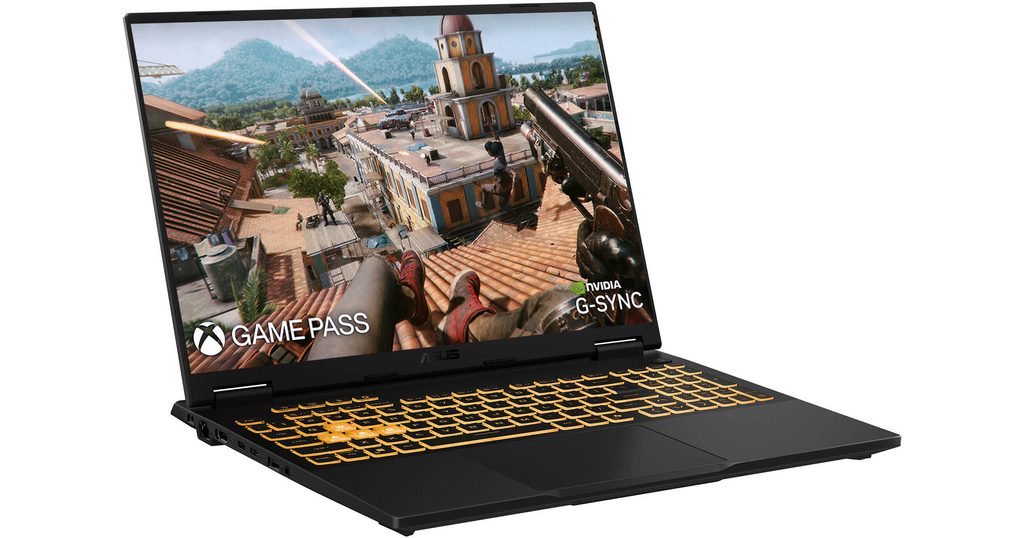

Image Source: ASUS Official
Who Is It For?
The TUF Gaming F16 places a 16-inch 16:10 chassis on a desk for evening competitive matches or multi-stream work while the 240–280 W brick stays plugged in. People who edit short clips at home after work or run local game servers alongside browser tabs fit the fixed-desk pattern this series supports. Students who keep the machine on a dorm desk for class notes by day and switch to the discrete GPU for night matches also match the daily flow.
The roughly 2.2 kg body and separate brick make repeated bag carries across a campus less practical than a pure desk setup. Two SO-DIMM slots allow memory capacity to change later, and dual M.2 bays support storage expansion. The 90 Wh pack keeps light browser or document work going for several hours away from the wall, but any sustained GPU load ends that window quickly. If this form factor or power doesn’t quite fit your daily work, exploring other lineup categories would be a better path.
1. 240–280 W Brick, Dual SO-DIMM, and Dual M.2 with Thunderbolt Options
Dedicated high-wattage brick versus limited USB-C charging
The series ships with a 240 W or 280 W AC adapter that must stay connected for full GPU output. USB-C Power Delivery reaches around 100 W under limited conditions and cannot sustain the same combined CPU-GPU power. On a desk this means one extra cable always present; any attempt to run high-load games or renders from a portable charger alone drops the discrete graphics into a restricted state. Confirm the exact adapter wattage listed for the chosen SKU.
Two SO-DIMM sockets and dual M.2 bays
Memory uses two accessible DDR5 SO-DIMM sockets that support dual-channel operation up to 64 GB. Storage includes two M.2 PCIe slots, so capacity can grow by adding a second drive without always replacing the original. After purchase an owner can raise RAM for larger project files or more open tabs, and expand storage for game libraries. Check the product page to see whether both memory sockets and drive bays are already filled.
16-inch 16:10 panel and Thunderbolt 4 on many units
Screen options stay fixed once ordered: primarily 16-inch FHD+ (1920×1200) or 2.5K panels at 165 Hz with G-SYNC support. Many configurations include a Thunderbolt 4 port for external displays or docking. The lid does not detach. Color coverage and brightness remain those of the selected panel for the life of the machine. Anyone needing external higher resolution must rely on the HDMI 2.1 or Thunderbolt/USB-C DisplayPort output. Verify the exact resolution, refresh rate, and port layout printed on the sales listing before ordering.
These physical limits keep full graphics power tied to the wall outlet and lock the internal display choice for the ownership period.
2. Desk Footprint, Bottom Intake, and Carry Weight
Chassis size on a narrow surface
The chassis measures approximately 354–355 × 251–269 × 17.9–28 mm depending on generation. On a small café table or folding desk the rear vents and the power brick leave limited free surface for a mouse. The 16-inch lid needs clear depth in front of the keyboard so the screen can open fully without striking a wall or secondary monitor stand. Daily placement therefore favors a dedicated desk rather than shared or temporary ones.
Underside intake under load
Cooling air enters through the bottom panel and exits at the rear and side vents, aided by Arc Flow fans and multiple heatpipes. Soft bedding, a thick sleeve, or a closed bag blocks the intake and drives internal temperatures up within minutes of graphics activity. On a hard desk the fans ramp under prolonged load and become audible in a quiet room; they stay quieter during light browser or document work. The underside also transfers heat to the surface beneath it during long sessions.
2.2 kg notebook plus brick for any move
The machine alone starts near 2.2 kg. Adding the 240–280 W adapter and cable pushes the total past 2.7 kg. A short walk between rooms remains manageable; repeated daily transit in a backpack across a campus or commute adds noticeable mass and requires a sleeve large enough for the 16-inch lid. The 90 Wh battery covers several hours of mixed office work but empties far sooner once the discrete graphics engage, so any mobile session still needs the brick nearby for serious tasks.
3. Performance by Use Case
Configurations pair Intel Core HX or Ultra HX processors with RTX 4050 to 5070-class Laptop GPUs often reaching 115–130 W TGP. All heavy graphics work assumes the dedicated brick is connected; battery mode sharply restricts the discrete chip.
| Use Case | Software | Rating | Reason |
|---|---|---|---|
| 1080p / FHD+ competitive gaming | Valorant, CS2, Fortnite | Sufficient | Full available TGP sustains high frame rates while plugged in |
| 1440p / 2.5K AAA titles | Cyberpunk, modern games with DLSS | Adequate | 115–130 W range and VRAM keep playable settings with upscaling |
| Short multi-stream editing | Premiere, DaVinci Resolve | Adequate | Timeline playback holds when powered; battery drains rapidly |
| Coding and browser multitasking | VS Code, Chrome, Docker | Sufficient | Dual-channel RAM and multi-core HX CPUs handle concurrent loads |
| Battery-only heavy gaming or export | Any GPU-intensive title or render | Not enough | Discrete GPU power collapses and runtime shrinks to a short window |
Lower GPU options or single-channel lower RAM configurations reduce the margin on the middle three rows.
4. Official Specs (with plain explanations)
| Category | Specification | Notes |
|---|---|---|
| Display | 16″ FHD+ or 2.5K 165 Hz IPS, 16:10 | Fixed at purchase; G-SYNC support |
| Processor | Intel Core i5/i7 HX or Ultra HX series | Soldered; generation varies by SKU |
| Graphics | RTX 4050 / 4060 / 5070 Laptop GPU | Typically 115–130 W TGP range |
| Memory | 2× DDR5 SO-DIMM, max 64 GB | Removable sticks |
| Storage | 2× M.2 PCIe | Dual-bay expansion |
| Battery | 90 Wh 4-cell (some lower configs 56 Wh) | User-accessible on most boards |
| Adapter | 240 W or 280 W AC | Separate brick required for full power |
| Weight | Starting at ~2.2 kg | With battery |
| Ports | USB-A, USB-C (PD/DP), Thunderbolt 4 (many), HDMI 2.1, Ethernet | Side-mounted |
This series is sold with different CPUs, memory, and storage depending on the release year and generation. Please match the specifications on your current seller page with the official information above.
Source: ASUS Official Product Page
The adapter wattage and dual-slot layout listed above directly set later upgrade paths and the permanent desk cable.
5. Main Variations in This Series
GPU choice among RTX 4050, 4060 and higher variants changes sustained frame rates and export speed once the machine is plugged in. Starting RAM of 16 GB versus dual-channel higher capacity affects how many browser tabs or project layers stay open before swapping begins. CPU options from mid-range HX to higher-core Ultra HX variants alter multi-core rendering and compile times. Display choice between FHD+ and 2.5K changes sharpness and power draw. Each of these choices is fixed after purchase except for the two SO-DIMM modules and the second M.2 bay.
6. What to Check on the Sales Page
Confirm the exact hardware listed for the SKU you are considering, because the same series name covers multiple generations and graphics levels.
- CPU Generation: Check whether you are getting 13th/14th-gen HX or newer Ultra HX processors.
- GPU model and listed TGP so the 115–130 W ceiling is clear.
- Whether both SO-DIMM slots are already filled and the dual M.2 bay status.
- Exact screen resolution and refresh rate (FHD+ or 2.5K 165 Hz).
- Included adapter wattage (240 W or 280 W) and battery rating of 90 Wh (or lower).
Matching these five items against the official sheet prevents receiving a lower-power or older configuration under the same series name.
7. Disclaimer & Buying Advice
This buying guide for the TUF Gaming F16 is based on official manufacturer specifications and recurring real-world user experiences. It is completely independent, not sponsored, and does not guarantee specific performance for every unit. Hardware configurations such as the processor, memory, and storage can differ by generation and region, so please double-check the exact specifications listed on your seller’s page before purchasing.
8. Beginner Guide
The 240–280 W brick and the dual SO-DIMM plus dual M.2 layout define the daily power and upgrade boundaries of this series more than any other factor. Start Here walks through how those fixed constraints interact with common desk and light-carry patterns before any purchase decision.
